GRANULATORS
GRANULATORS
In the production and preparation of plastics, rubber and chemicals, size reduction machines play a major role. In plastic processing plants, in particular, moulding excesses, scraps, damaged articles etc. accumulate. These are reduced to granules of required size by our grinders. The granules can be recycled, simplifying production and increasing profits.

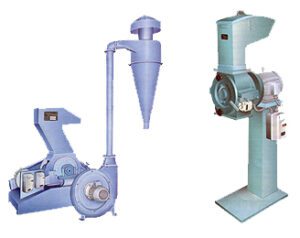

PM-G-1
Features:
- Heavy and sturdy construction makes the machine versatile and able to work under difficult conditions.
- Quick exchange of sieves enables machine to produce coarser and finer granules according to ones requirement.
- Easy accessibility of the grinding chamber, easy cleaning by opening the front lid.
- Special toggle type limit switch is connected to prevent any unintentional turning of rotor when cleaning or changing
knives or sieves.
PM- Grinders
Special Features:
Feed this grinder by hand or a mechanical feeding devices as required for a specific material. The grinder is a heavy duty granulator with sturdy/robust construction for the production of clean granules. The material is processed directly by the specially designed rotor and stator knives and reduces to the desired particle size. The fly wheel effect of the rotor guarantees smooth, shock free running even when there is great stress. Also the upper part of the machine is easily opened by the swing back quick lock system. A switch prevents the motor from starting when the machine is open.
This machine can also have a Pneumatic Suction Unit which provides additional cooling, ensuring high output. It also enables the ground material to be discharged whenever required.
The size of the particles is determined by the selected mesh size of the screen installed in the machine.
Note: Pneumatic collection system can be provided to any model manufactured by Plastic Machineries.
Specifications
| Model |
G-M |
G-1 |
G-2 |
G-3 |
G-4 |
G-5 |
G-16 |
G-24 |
| Feed Opening (in mm) | 100Í150 | 100Í150 | 250Í200 | 300Í275 | 350Í255 | 350Í255 | 460Í400 | 610Í400 |
| Rotor Diameter (in mm) | 100 | 150 | 225 | 300 | 400 | 400 | 400 | 400 |
| Length of Knives (in mm) | 100 | 100 | 250 | 300 | 250 | 250 | 400 | 300Í2 |
| No. of Knives | 5 | 5 | 7 | 7 | 7 | 13 | 4 | 7Í2 |
| Power Requirement (in H.P.) | 1 | 3 | 5 | 7.5/10 | 10/15 | 15/20 | 20/25 | 30/40 |
| Production Capacity-Approx. | ||||||||
| Average (kgs/hr) | 20-25 | 40-50 | 70-80 | 100-130 | 140-15 | 150-175 | 180-200 | 200-250 |
| Weight-Approx. (In Kgs.) | 60 | 170 | 350 | 600 | 800 | 1000 | 1200 | 1500 |
| Shipping Space | 500Í | 500Í | 1000Í | 1000Í | 1250Í | 1250Í | 1250Í | 1400Í |
| Required (in mm) | 300Í | 300Í | 500Í | 500Í | 625Í | 625Í | 800Í | 1000Í |
| 1200 | 1500 | 1500 | 1500 | 1500 | 1500 | 1700 | 1800 |
